ZoneMIX Multimedia ZoneMixer


Hand made in Australia

Click on image to see larger version

More ARX Signal Processing:

Audibox Series

Balance 8
DeBalance 8

MSX 48
MSX 32
MSX 12

Afterburner
Compo
Quadcomp®II
Sixgate™

8-pre

iSwitch SUB

BarMIX
MIXX
MIXXMaster

MIXXMaker

MaxiDRIVE

MaxiMIX
MaxiSPLIT

DI6 SM
DI-Plus RC
DI-Plus 2 RC

UniMIX
UniFace

Features


  • Has Wireless audio, USB and MiniJack inputs!
  • Plus 2 x Balanced XLR Mic Inputs
  • Plus a stereo Line In channel
  • Plus all inputs can be switched to Stereo Zone 1 or 2, or Both
  • User-friendly intuitive layout, in 1 RU package
  • Flawless performance in any audio environment

Applications


  • Sound Reinforcement
  • AV Systems
  • Clubs/Gyms/Karaoke/Restaurants
  • Ideal for Audio from Tablets, Phones, Laptops and more



Innovation
ARX introduces the all-new ZoneMIX multimedia, multi-channel mixer.

Great Features

  • Wireless audio, USB and MiniJack inputs!
  • Plus 2 x Balanced Low Noise Microphone pre-amps
  • Plus a stereo Line In channel
  • Plus all Inputs can be switched to Stereo Zone 1 or 2, or Both
  • Plus Outputs can be switched to Mono for distributed systems

AC Power
The ZoneMIX is available as an AC specific 100 to 120V AC model or a 220 to 240V AC model. AC power is connected to the unit via a standard three pin IEC connector, with built-in fuse.

T E C H N I C A L || S P E C I F I C A T I O N S

Microphone Inputs: Electronically Balanced on XLR Connectors, switchable to Mono

Stereo Line Inputs: Line level inputs on RCA Connectors

Input Gain: Variable 0dB to 50dB on Mic/Line channels by rear panel trim control, plus Mic/Line input switch (–20dB)

Channel Level: Infinity to +6dB Gain

Frequency Response: 20-20KHz ± 1dB

Distortion: Below .005% 100Hz to 10KHz

Master Outputs: Electronically Balanced XLR, switchable to Mono

Master Outputs Signal/Noise: -90dB unweighted.

Max Output Level: +20dB

Wireless Audio Receiver Specifications

Range:

Approx 2 - 4 metres

Depends on paired source device

LED Indicators:

Scan Red LED

Red LED Flashes

Lock Blue LED

Matching/Pairing: Blue LED Flashes

Matched/Paired: Blue LED On

Frequency

2.402 - 2.480 GHz

Sensitivity

-90dBM @0.1% BER


USB Specifications

Input Connector USB type B port

Codec 24 bit High Resolution, 44.1 and 48K, program dependent

USB Power Operating current via USB Port 80mA


With its superb audio quality, headroom to spare, and intuitive interface, the ARX ZoneMIX is the total solution to today’s install requirements.





T E C H N I C A L || S P E C I F I C A T I O N S

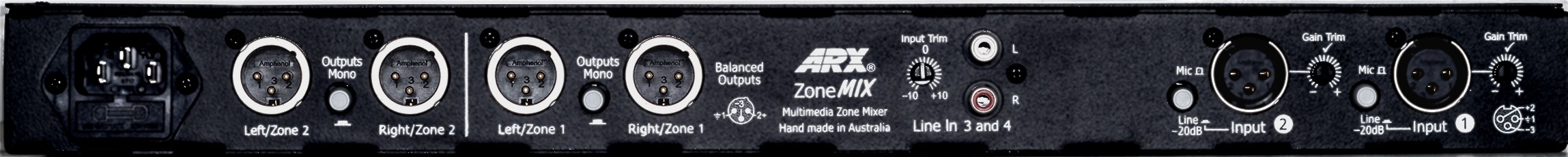

Rear Panel
Click on image to see larger version

Input Gain:
Variable 20dB–50dB on each channel by rear panel trim control, plus Mic/Line input switch

Channel Level: Infinity to +6dB Gain

Frequency Response: 20–20KHz +or- 1dB

Distortion: Below .005% 100Hz to 10KHz

Master Outputs Signal/Noise: -90dB unweighted.

Microphone Inputs:
Electronically Balanced XLR connector

Channel Outputs:
150 Ohms Line Level jack connector

Master Outputs:
Electronically Balanced XLR 300 ohms Line Level

Max Output Level: +20dB

AC Power: Supplied as 100-120 VAC model or 220-240 VAC model 50/60HZ 8VA (8 watts) 3 pin IEC connector with removable cable
