MaxiSPLIT 2 into 4, 1 into 8 Line Distribution Splitter


Click on image to see larger version

More ARX Signal Processing:

Audibox Series

Balance 8
DeBalance 8

MSX 48
MSX 32
MSX 12

8-pre

iSwitch
iSwitch SUB

MIXX
MIXXMaster

MIXXMaker

MaxiDRIVE

MaxiMIX
MaxiSPLIT

DI6 SM

UniMIX

In the modern multi-zone Installation audio environment it has become a fact of life that one signal now has to go to more than one place, and usually at differing levels. And, to ensure a low noise floor and good frequency response, the split signal needs to be buffered and balanced as well.

The Solution

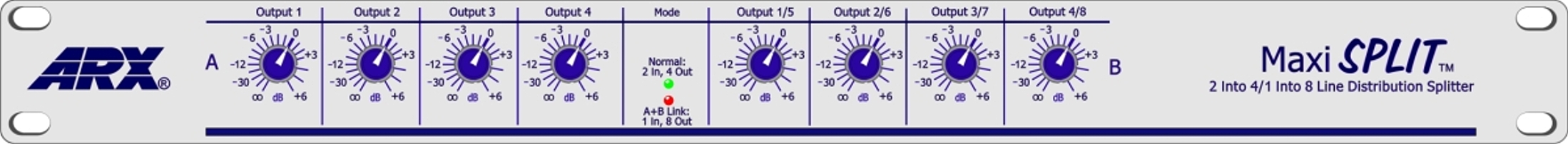

To fulfil this seemingly simple but important signal splitting task, ARX have designed the MaxiSPLIT: - two independent channels of 1 into 4 Splitters, switchable to a single channel 1 into 8 Splitter by using the rear panel channel link switch. Mode status is shown by the front panel LED indicators.

Balanced Inputs and Outputs
Each channel features Male and Female electronically balanced XLR inputs, with passive RF filtering to prevent RF breakthrough.
Each output features an electronically balanced Male XLR output with individual output gain control on the front panel, providing up to +6dB of gain.

Wide Dynamic Range
Internally, careful attention to signal path design has resulted in a unit with wide dynamic range, enough headroom to cope with the hottest line signal, and better than digital noise specifications.

Universal AC Power
AC power range is a universal 100 to 120V or 220 to 240V AC, and is connected to the unit via a standard IEC connector, with built-in fuse and voltage change switch

Applications
A typical MaxiSplit application would be as a Master Line Distribution Splitter. In this way it can control the levels of 4 different zones in a stereo installation, or up to 8 different zones in a mono installation.

Other applications include splitting effects sends to multiple effects units in both Studio and Live sound applications, supplying different feeds from the main signal, and separating OB signals in broadcasting.

Accurate and compact, the MaxiSplit's unique combination of ultra low distortion, low noise and high headroom makes it the ideal installation line distribution splitter.





You'll never compromise on Quality when you choose ARX


T E C H N I C A L || S P E C I F I C A T I O N S


(Click on image to see larger version)

Modes of operation 2 channel 1:4 Splitter, 1 channel 1:8 Splitter
Input Impedance 44K Ohms Balanced, 22K Ohms Unbalanced
Input Headroom +21dB
Output Level +26dB
Output Signal/Noise (@ unity gain) -95dB unweighted -101dB A weighted
Output Impedance 300 Ohms Balanced, 150 Ohms Unbalanced

Dynamic Range 121dB
Frequency Response 20Hz-20 KHz -.5dB
Distortion (@ unity gain)
100Hz .0035%
1KHz .0033%
10KHz .0037%
Input Connector Type Female XLR plus Male XLR Input Loop
Output Connector Type Male XLR


Front Panel Controls

  • Individual Level controls for all 8 splits
  • Mode status LEDs
  • Marker panel for labelling split assigns

Rear Panel

  • Balanced Inputs and Outputs, on Balanced XLR connectors
  • Switchable between 4 x stereo split mode or 8 x mono split mode
  • AC input connector, with voltage switch and fuse




brochure pdf linkmanual pdf link
