The ARX USB DI-Q is an USB to Analog audio playback interface for the playback and monitoring of audio files from Windows or Mac computers for applications including education lecture theatres, corporate presentations and courtroom environments.

• Monitor and Cue: The USB DI-Q allows the user to monitor and cue audio files in a closed headphone environment and switches / enables the audio output to a Public Address/sound system as required.
• Plug and Play: The USB DI-Q installs as a fully compatible 'Plug and Play' generic USB audio device so does not require any special driver installation on Mac OSX, Win7/8/10.
• Compatible: The USB DI-Q is ideal for interfacing any USB equipped computer with the balanced inputs of a professional sound system.
• Retrofit: The simplicity of the setup of the USB DI-Q means that this product can be integrated easily into the existing AV infrastructure of a building.
• Simple: Once in place, the USB DI-Q only requires touch button operation so that it can be used by non technical operators.
• The USB DI-Q is housed in a heavy duty all-steel chassis finished in attractive matt textured powdercoat, with hardwearing epoxy screen printing and non-slip rubber base pad. It is ideal for interfacing any USB equipped computer (especially notebook/laptop computers) with the balanced inputs of professional sound systems.
  Security features include an optional bracket kit for under-table mounting.

• The USB DI-Q includes a premium quality USB-A to USB-B cable, and is hand made in Australia

  ---

  AudiBox PLUS sized devices like the USB DI-Q VSR have a slightly enlarged chassis in order to fit all the connectors across the front and rear!

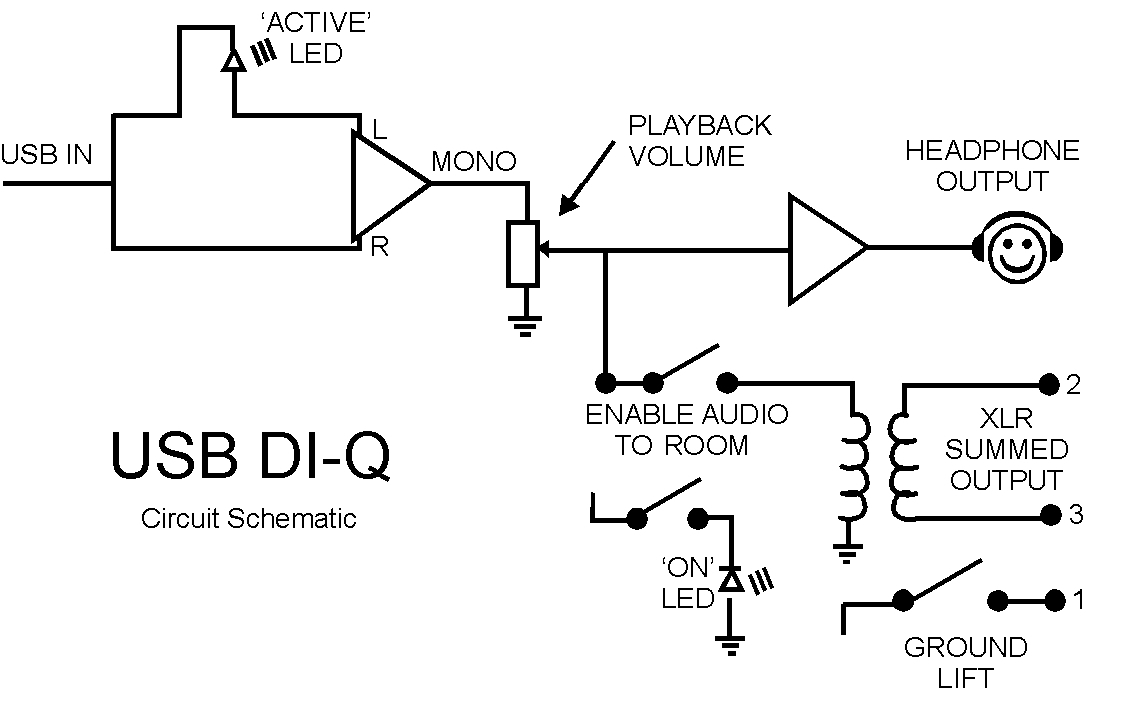

USB DI-Q Schematic Diagram

---

USB DI-Q Specifications

Input Connector: USB type B port

Codec: 24 bit High Resolution, 44.1 and 48 KHz

Output Impedance: 300 Ohms Transformer Balanced

Output Level: 0dB max

Output Noise:

USB - System dependent

ISO transformer - Environment sensitive

Power: Operating current via USB Port 80mA

Headphone output specs: Max. output level 300mW @ 32 Ohms

Frequency Response: 20–20 KHz ± 0.5 dB

Dynamic range: 90dB ‘A’ Weighted

Balanced Output Frequency Response: 20 - 20 KHz ±0.5 dB

Output Connectors: 1 x Male XLR, wired Pin 2 + Hot, Pin 3 – Cold. Pin 1 Chassis Ground

Construction: All-steel powdercoated chassis, fibreglass PCB, epoxy printing, slip-resistant rubber basepad

Optimal storage temperature range 0'C - 40'C

Operating temperature range 0'C - 50'C

System Requirements: Windows PC running Windows XP/7/8/10 or Mac running OS X or later, and a USB port
