Network D I
Dante Network audio interface

All about Dante For more Information on Dante, what it's all about, and how to use it, just click on this link below

Dante Overview: A look at how the Dante Network system and protocols are changing
the world of Audio Networking

More Audiboxes:

Blue DI

USB DI-Plus
(USB Plus Analog)

USB DI-Plus VC
(USB Plus Analog)

USB DI
USB DI-HP
USB DI-VC

USB I/O
USB I/O-VSR

SuperSplitter

ISO Balancer
ISO Balancer-VC

ISO Balancer DI

ISO De-Balancer
ISO Later
ISO Splitter
ISO Combiner
ISO Switcher
ISO Selector

Remote Switcher
Remote Selector

Q Switch

Pro DI
AV DI
Ear Driver

DI-Plus RC
DI-Plus2 RC

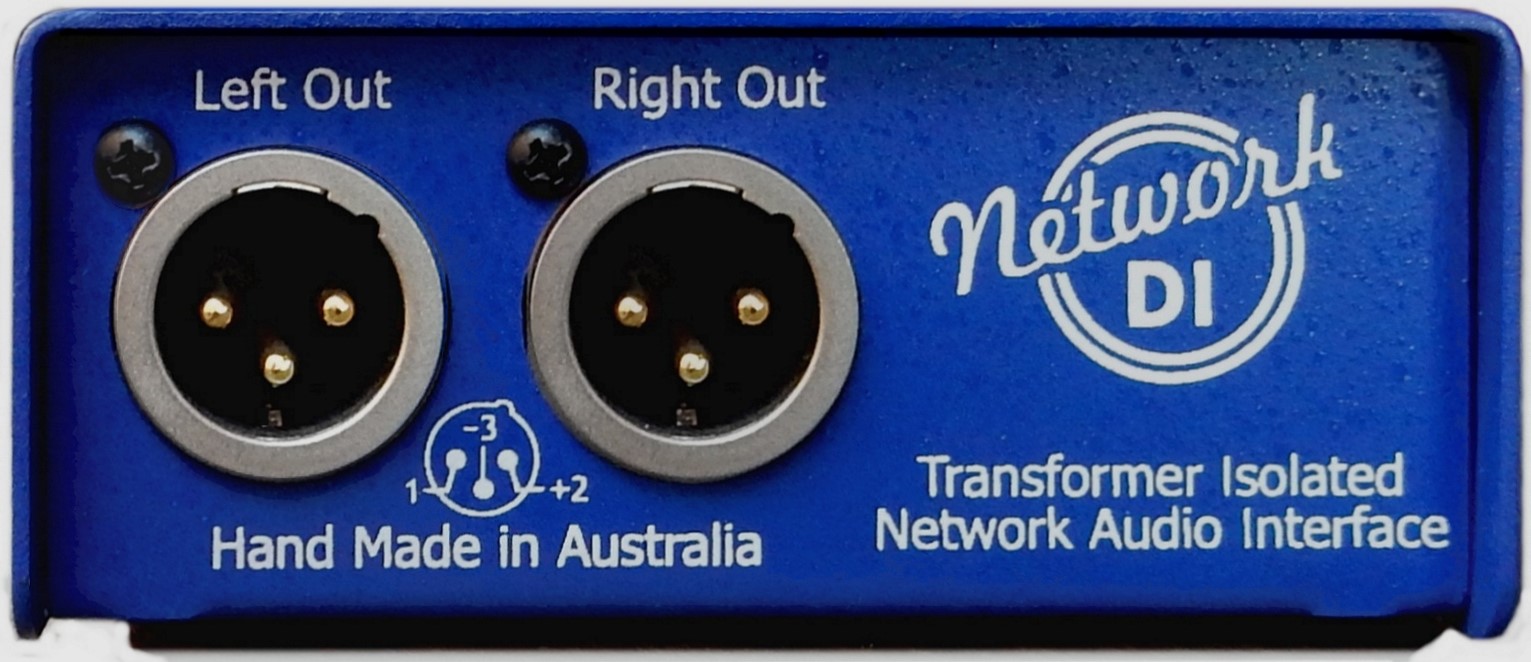

Front View

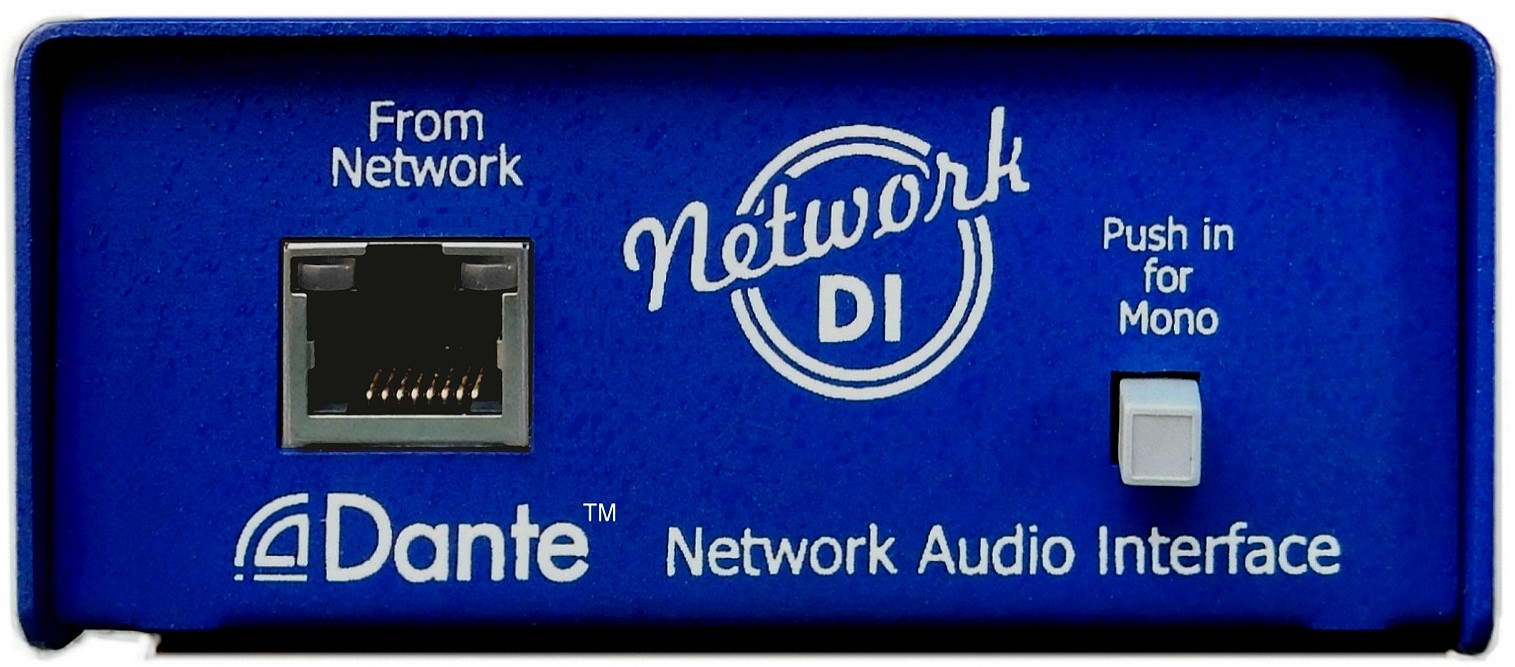

Rear View

Network powered - requires no external power

The new Network DI from ARX is an analog breakout box using the popular Dante network protocol to extract audio from a network and convert it to Transformer isolated analog audio, suitable for connecting to mixing consoles and other devices requiring an analog source

A Mono switch on the front panel provides Left and Right analog summation for applications requirig a mono signal

The Network DI is housed in a heavy duty all-steel chassis finished in attractive matt textured polyurethane, with hardwearing epoxy screen printing and slip resistant rubber base pad.

Security features include an optional bracket kit for under-table mounting.

Hand made in Australia

Network DI || T E C H N I C A L || S P E C I F I C A T I O N S

The Network DI is designed to receive audio channels from a Dante network and provide studio quality, low latency audio via balanced XLR output connectors to analog audio equipment.

Thus any audio available on the network can be converted to Analog and routed via the Network DI to, for example. an amplifier, or powered speaker(s), mixing console, digital signal processor and many other analog audio devices.

Dante Audio In

Input Connector 1 x RJ45 Ethernet
Sample Rate 44.1KHz, 48 KHz (default), 96KHz
Bit Depth 24 Bits
Network Speed 100 Mbps
Power Consumption 2 Watts max.
Power over Ethernet Class 1 802.3af POE PD compliant

Analog audio out

Output Connectors 2 x Male XLR connectors, Pin 1 Chassis ground, Pin 2+, Pin 3-
Output impedance 150 ohm balanced, 75 ohm unbalanced
Output Level +4dBu @ 0dBFS
Frequency Response 20Hz - 20 kHZ +- .5dB
Dynamic range < 100dB
Signal to noise < 100dB
THD <.01% at +4dBu
Features: Mono Switch L & R summation
Construction: All-steel chassis, fibreglass PCB, epoxy printing, slip-resistant rubber base pad
Precision engineered
With a couple of exceptions, all products in the Audibox range share a common footprint and manufacturing platform. Offset lid screws enable close side-by-side mounting of multiple units.
