USB-DI-VC

In response to many requests from users of our original USB DI who have been using it for specific applications, ARX is excited to present the new ARX USB DI-VC - everything that the original USB DI was, with the addition of an output level control. It is still a true Plug and Play digital to analog pro audio interface, removing the need to use any existing sound card outputs, but now the output level can be modified quickly and accurately..

Naturally it still features full transformer balanced output isolation to eliminate earth loops / ground hum and other extraneous interaction noise and distortion.

The addition of the volume control allows the USB DI-VC to be used without a mixer. This is a very useful option when driving active loudspeakers from a laptop - the level control lets you reduce the level instantly to suit the required SPL, which still retaining an excellent signal-to-noise ratio.

Plug and Play

The USB DI-VC installs as a fully compatible generic USB audio device, requiring no special driver program installation on Mac OSX, Windows XP, 7/8/10

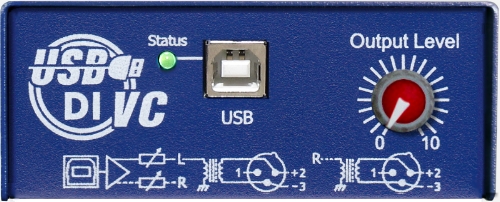

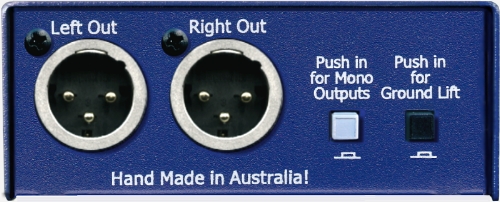

The rear panel has a Type B USB input connector while the front panel has an Output Level control and two transformer balanced analog audio XLR Line out connectors for connecting to any standard balanced analog input.

A status LED on the rear panel next to the USB Input indicates that the USB DI-VC is connected and operating.

The USB DI-VC is housed in a heavy duty all-steel chassis finished in attractive matt textured powdercoat, with hardwearing epoxy screen printing and slip resistant rubber pads. It is ideal for interfacing any USB equipped computer (especially notebook computers) with the balanced inputs of professional sound systems.
Security features include Kensington®-type computer lock slot and optional bracket kit for under-table mounting.

The USB DI-VC is available in Dual Channel format, includes a premium quality USB-A to USB-B cable, and is hand made in Australia

T E C H N I C A L || S P E C I F I C A T I O N S



USB DI VC Schematic Diagram


USB-DI VC Specifications

Input Connector USB type B port

Output Impedance 300 Ohms Transformer Balanced

Output Level User variable from 0dB down to infinity (off)

Output Noise
USB - System dependent
ISO transformer - Environment sensitive

Frequency Response 20 - 20 KHz ± 0.5 dB

Power Operating current via USB Port 80mA

Output Connectors
2 x Male XLR, wired Pin 2 + Hot, Pin 3 – Cold. Pin 1 Chassis Ground

Construction
All-steel powdercoated chassis, fibreglass PCB, epoxy printing,
slip-resistant rubber feet

System Requirements

  • Windows PC running Windows XP, 7/8/10 , Mac running OS X or later
  • USB port

98SE will need the Win 98SE CD Rom to install driver. However, in reality if you're serious about music you'll already be using a later operating system
